Charmhigh Best Sell Desktop SMT pick and Place Machine CHMT36VA CHMT48VB CHMT560P4
110v/ 220v, English Language, CE declaration, IOS9001.
Easy operation, fast learnning, easy repairing, good for prototyping, researching, small batch production, education...
PCB making machine, SMT production line. It is your best robot friend!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support & Contact:
Kimi Liu
Charmhigh Technology Limited
Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us in YouTube: www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA/videos
If you want to see more information and videos, please contact us by E-mail.
We will response you at the first time.
CHM-T36VA Click Aliexpress link to buy: https://www.aliexpress.com/item/32667844951.html?spm=a2g0o.store_pc_groupList.8148356.1.3f7b17fbNrJb0b
CHM-T48VB Click Aliexpress link to buy: https://www.aliexpress.com/item/32708697940.html?spm=a2g0o.store_pc_groupList.8148356.5.bc5523e976mvb3
Specifications:
| Model | CHM-T36VA |
| PCB area | 10mm*10mm - 355mm*355mm |
| X Y axis Travel | 400*460mm |
| Z axis moving range | 15mm (Highest component 5mm) |
| Placement heads | 2pcs (comes with 4 nozzles) |
| Feeders | Tape feeders 29pcs (8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs)
Front bulk IC tray=14pcs, custom IC tray 20pcs Tube feeder supported (optional) |
| Vision system | Two cameras (up & down camera) Vision max range 22*22mm |
| Drive | Closed-loop control stepper servo drive system, with encoder, not out of step |
| Z axis self-return detection | Yes, it prevent nozzles breaking |
| Pull needle self-return | Yes, prevent needle broke |
| Leakage of material detection method | Vacuum detection, vision detection |
| Mounting speed | 3500cph (vision off); 2500cph (vision on) |
| Mounting precision | ±0.025mm |
| Components | 0402-5050,SOP,QFN..etc. |
| Machine dimension | L 960mm * W 705mm * H 335mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | Yes (software compatible with windows7, windows10) |
| Voltage | 110VAC/ 220VAC, 50Hz/60Hz |
| Net weight | 65kg |
| Gross weight | 76kg / 108*80*53cm |
| Model | CHM-T48VB |
| PCB area | 10mm*10mm - 355mm*355mm |
| X Y axis Travel | 510*460mm |
| Z axis moving range | 15mm (Highest component 5mm) |
| Placement heads | 2pcs, comes with 4 nozzles |
| Feeders | Tape reel feeder 58pcs (left 29pcs + right 29pcs)
(8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs,)
Front bulk IC feeder=14pcs, customs IC tray 20pc Tube feeder supported (option) |
| Vision system | Two cameras (up & down cameras) Vision max range 22*22mm |
| Drive | Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection | Yes, it prevent nozzles breaking |
| Pull pin self-return | Yes, it prevent needle breaking |
| Leakage of material detection method | Vacuum detection, vision detection |
| Touch screen | 7 inch industry touch screen |
| Main board | Independent research industry main board |
| System | Embedded Linux system |
| Mounting speed | 4000cph (vision off); 3000cph (vision on) |
| Mounting precision | ±0.025mm |
| Components | 0402-5050,SOP,QFN ..etc. |
| Machine dimension | L 960mm* W 705mm* H 335mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | No need external PC (it has build-in computer) |
| Voltage | 220VAC (110VAC), 50Hz/60Hz |
| Net weight | 68kg |
| Gross weight | 85kg / 107*80*52cm |
| Model | CHM-T560P4 |
| XYZ Axis travel | 600mm(X)*630mm(Y)*20mm(Z) Max height component:10mm |
| PCB max size | 400mm(L)*270mm(W) |
| Support components | 0402-5050,LED, SOT, SOP, QFN,BGA etc. |
| Mounting speed | · Without vision:5000cph · With Vision:4000cph |
| Precision | ±0.025mm |
| Placement head | 4 heads |
| Feeding system | Support max 60pcs 8mm tape reels *Feeder option: Yamaha universal type 1.electric feeder: 8mm (for 0402 etc) 2.pneumatic feeder: 8,12,16,24mm 3.vibration feeder(3 tubes/ 5 tubes) · 11pcs front bulk material · Support IC tray |
| Vision detection | Double cameras (up & down) Up-looking camera max recognize range of component: 22*22mm |
| Motor control | · -XY Axis stepper motor with encoder with closed-loop control · -Flexible S deceleration · -Z Axis reset detection |
| Components leakage detection | Vacuum detection / vision detection |
| Main board | High-reliability industry motherboard |
| Touch Screen | Build-in 7 inches industry screen, no need external monitor or PC; (support cold plug-in USB mouse) |
| Operation system | Embedded Linux system |
| External air source | 0.5 MPa |
| Power supply | AC220V 50Hz / AC110V 60Hz |
| Dimension | 1180mm(L)*870mm(W)*600mm(H) |
| Power | 250W |
| Net weight | 165Kg |

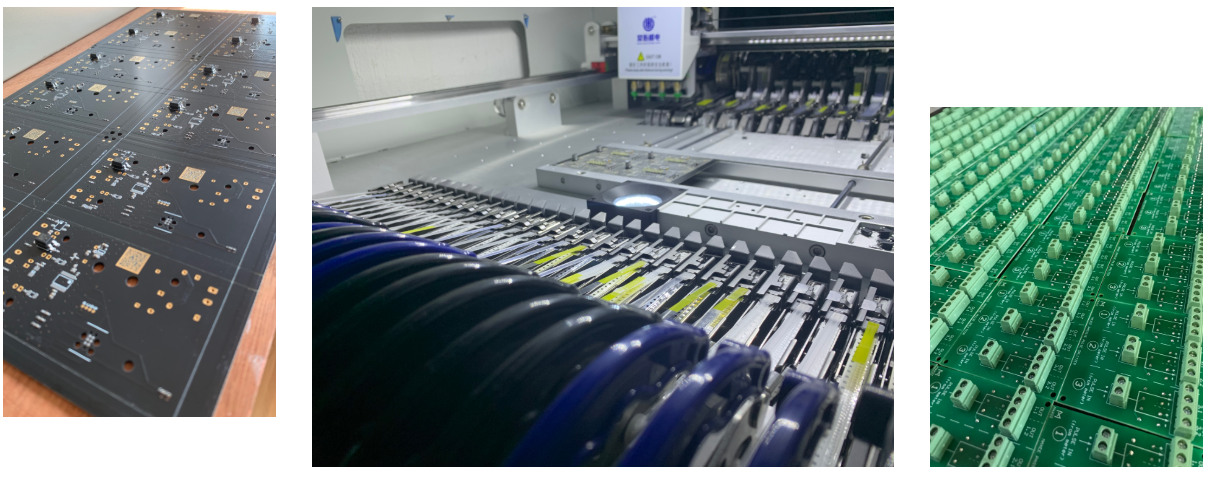

PCB samples from customers:

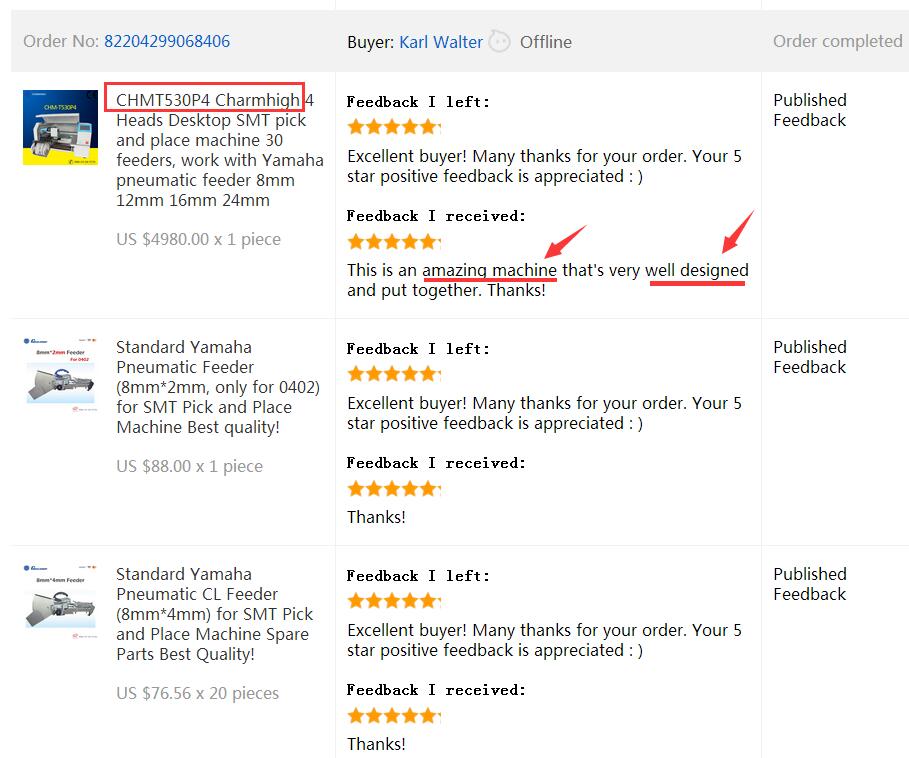

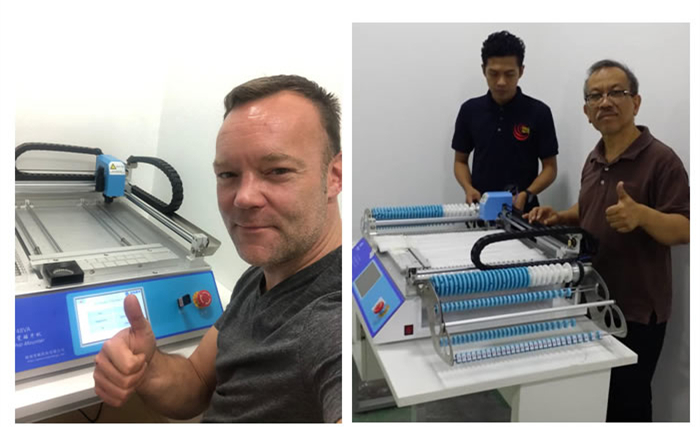

High feedback from customers:
